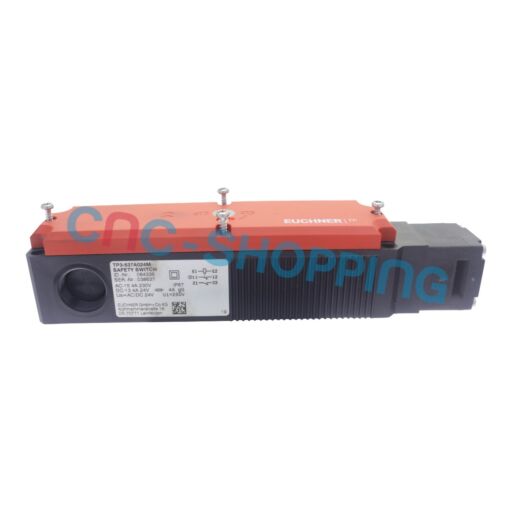

EUCHNER 084336 TP3-537A024M Safety Switch

Buy online your EUCHNER 084336 TP3-537A024M Safety switch from our e-store Cnc-shopping. This high-quality Safety switch is tested on CNC Simulators by skilled Engineers to ensure optimal performance and reliability. Manufactured by the renowned EUCHNER, it is ready to replace your defective EUCHNER 084336 TP3-537A024M Safety switch and comes with a warranty for your peace of mind. As a reliable supplier for years, we maintain a large inventory to support the maintenance and repair needs of various industries, helping to extend the lifetime of your industrial equipment.

The EUCHNER 084336 TP3-537A024M Safety switch features a connected electrical power of 8 W and a connection cross-section of 0.34 ... 1.5 mm². It has a rated insulation voltage (Ui) of 250 V and a rated impulse withstand voltage (Uimp) of 2.5 kV. The utilization category is AC-15 with 4 A at 230 V and DC-13 with 4 A at 24 V. It offers short-circuit protection according to IEC 60269-1 with 4 A gG. The operating voltage of the electromagnet is 24 V AC/DC with a tolerance of -15% to +10%, and the duty factor of the electromagnet is 100%. The switching voltage is a minimum of 12 V at 10 mA, and the switching current is a minimum of 1 mA at 24 V. The thermal rated current (Ith) is 4 A.

Mechanical and environmental specifications include a maximum actuation speed of 20 m/min, with 3 x M20 x 1.5 connection types. It has one door position opening contact and one positive opening interlock monitoring contact. The withdrawal force is 20 N, and the actuation frequency is a maximum of 1200 operations per hour. The actuation force is 10 N, and the mounting position is optional. The mechanical lifespan is 1 x 10⁶ operations. The holding force is 10 N, with an Fmax holding force of 1300 N and an FZh holding force of 1000 N. The switching principle is a dependent action contact element, with an IP67 protection rating. The housing is made of glass fiber reinforced thermoplastic, and the contacts are made of silver alloy, gold-plated by sputtering. The interlocking principle is power-off locking.

In the event of a breakdown or downtime, having an emergency spare part like the EUCHNER 084336 TP3-537A024M Safety switch is crucial. At Cnc-shopping, we understand the importance of minimal disruption to your operations and offer this essential component to get your machinery back up and running swiftly.

In addition to current parts, Cnc-shopping also caters to customers looking for obsolete EUCHNER parts and Safety switch components that may no longer be readily available from the manufacturer but are still in demand by users who need to maintain or repair their existing CNC machines with EUCHNER. Cnc-shopping offers a platform for purchasing obsolete parts, exchange service, repair, and new parts. Cnc-shopping.com helps ensure that EUCHNER machine owners can find the necessary components to keep their equipment running smoothly.
